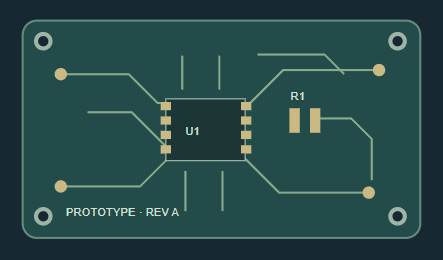

PCB PrototypeManufacturing

Order the unpopulated circuit boards for in-house assembly or a separate assembly partner. Define the board construction, finish, holes, outline, and electrical test requirements in the fabrication package.

Best fit: layout iterations, enclosure checks, and teams that already manage component assembly.

Combine fabrication with component sourcing, SMT/THT assembly, and agreed inspection or testing. Add a BOM, placement data, assembly drawings, and firmware or test instructions where needed.

Best fit: powered circuit evaluation and designs with packages that are difficult to assemble by hand.

Move an approved design into a small production run. Preserve the released fabrication files, material specification, assembly instructions, and acceptance criteria across repeat orders.

Best fit: pilot builds, field evaluation, and the first production batch after design changes close.

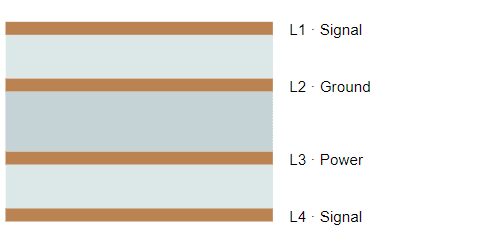

For general digital, control, and mixed-signal boards. Specify the layer order, board thickness, and copper requirements; consider high-Tg material when the assembly process and thermal duty call for it.

For dense routing and component fanout. Review microvia structure, sequential lamination, and via filling requirements before committing the layout to a particular manufacturing process.

For designs where laminate properties and fabrication geometry affect electrical performance. Specify the material grade and permitted substitutions rather than relying on a generic “RF material” description.

For constrained packaging and connections between rigid sections. Identify bend regions, stiffeners, coverlay, and whether the circuit bends only during installation or repeatedly in service.

For power distribution designs that require thicker copper. Review current paths, thermal conditions, spacing, and copper thickness together; copper weight alone does not establish a safe current rating.

For applications such as LED modules where heat transfer is a key design consideration. Define the base material, dielectric system, mounting arrangement, and electrical insulation requirements.

Optical inspection checks circuit features against design data. Dimensional and visual checks address the outline, hole position, finish, solder mask, and other drawing requirements. These checks do not establish powered circuit performance.

Continuity and isolation checks detect open or shorted connections. Flying probe testing is often useful for prototypes because it avoids a dedicated test fixture; the chosen method depends on the board and order scope.

When required, agree coupon construction, measurement method, tolerance, and report delivery. A coupon measurement assesses representative transmission-line geometry; it does not validate every aspect of the assembled system.

For populated prototypes, inspection may include SPI, AOI, or X-ray as appropriate to the package risks. Functional testing needs defined power conditions, firmware, interfaces, expected results, and any fixtures or loads.

Record the fabrication files, drawing, material specification, stackup, BOM, and firmware version that produced the accepted prototype.

Document layout changes, material substitutions, and process changes. Reassess affected features rather than assuming earlier test results still apply.

Define the checks and pass/fail limits required for repeat orders. Adjust panelization, tooling, and test strategy as volume grows.

Tell us what you need to validate and what you will handle in-house. We can review the requested fabrication, sourcing, assembly, and testing scope together, so your quotation describes the deliverable your team expects.

Need populated boards? Explore prototype PCB assembly.
